Description

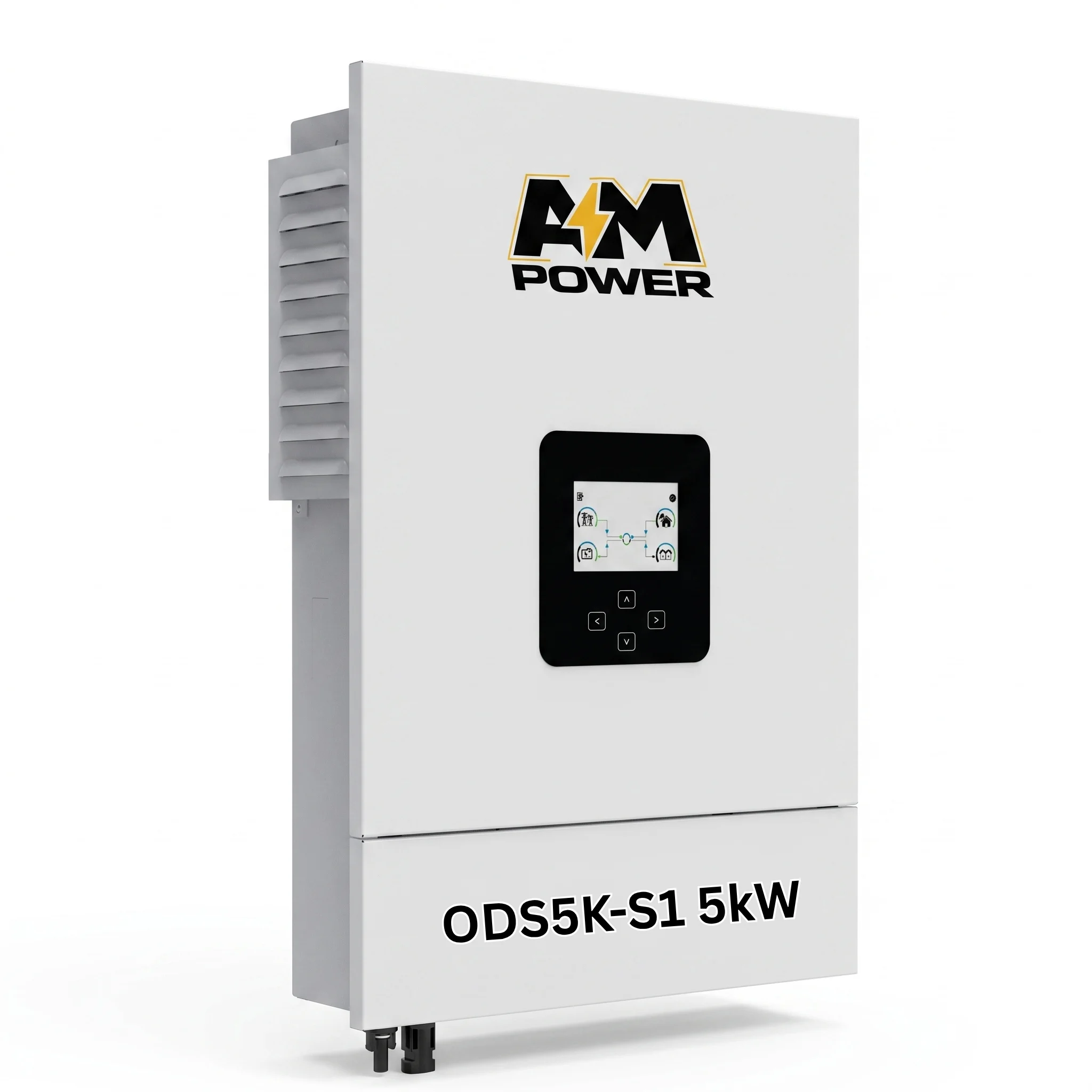

The AM POWER ODS5K-S1 5kW Hybrid Solar Inverter is built to provide reliable power conversion and intelligent energy management for residential and small commercial solar installations. With a rated output of 5000W and support for a 48V battery system, it delivers stable performance for everyday energy requirements. The inverter produces a pure sine wave output for safe operation of sensitive electrical equipment and supports both lithium and lead-acid batteries for flexible energy storage. Its wall-mounted design, LCD display, and IP54-rated enclosure make it suitable for long-term installation in various environments. These specifications are provided in the official AM POWER datasheet.
The inverter incorporates comprehensive protection features, including anti-islanding protection, AC over-current protection, AC over-voltage protection, short circuit protection, overload protection, over-temperature protection, PV reverse polarity protection, battery reverse polarity protection, surge protection, and Ground Fault Circuit Interrupter (GFCI). It also supports Wi-Fi, RS232, and RS485 communication for convenient system monitoring and allows parallel operation of up to 9 inverters, providing flexibility for future solar system expansion.
Key Features
- 5kW Hybrid Solar Inverter
- Rated Output Power: 5000W
- Maximum PV Input Power: 9000W
- Maximum MPPT Current: 27A
- Pure Sine Wave Output
- Supports Lithium & Lead-acid Batteries
- 48V Battery System
- Maximum Charging Current: 160A
- LCD Display
- Wall-Mounted Design
- IP54 Protection
- Wi-Fi, RS232 & RS485 Communication
- Supports Parallel Operation (Up to 9 Units)
- Anti-Islanding Protection
- AC Over Current Protection
- AC Over Voltage Protection
- AC Short Circuit Protection
- Overload Protection
- Over Temperature Protection
- PV Reverse Polarity Protection
- Battery Reverse Polarity Protection
- Surge Protection
- Ground Fault Circuit Interrupter (GFCI)
