Description

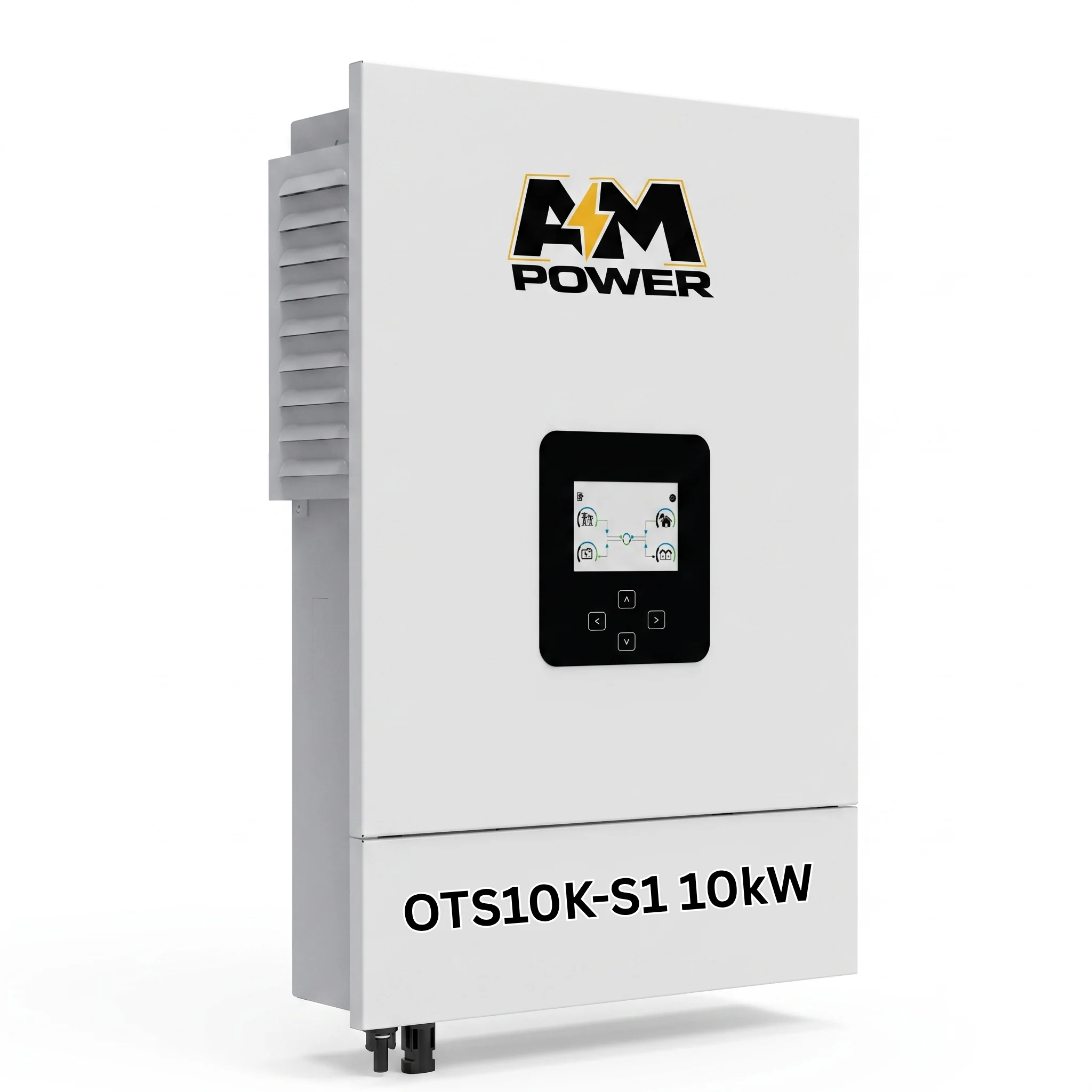

The AM POWER OTS10K-S1 10kW Hybrid Solar Inverter is engineered to deliver high-performance solar power conversion and intelligent energy management for residential, commercial, and industrial applications. With a rated output of 10000W, pure sine wave output, and support for 48V lithium and lead-acid batteries, it provides stable and efficient power for demanding energy requirements. Its wall-mounted design, LCD display, and IP54-rated enclosure ensure dependable operation while offering easy installation and long-term durability. These specifications are provided in the official AM POWER datasheet.
Built with advanced safety and monitoring capabilities, the inverter features anti-islanding protection, AC over-current protection, AC over-voltage protection, AC short circuit protection, overload protection, over-temperature protection, PV reverse polarity protection, battery reverse polarity protection, surge protection, and Ground Fault Circuit Interrupter (GFCI). It also supports Wi-Fi, RS232, and RS485 communication for real-time monitoring and allows parallel operation of up to 9 inverters, making it an ideal solution for scalable solar energy systems.
Key Features
- 10kW Hybrid Solar Inverter
- Rated Output Power: 10000W
- Maximum PV Input Power: 15000W
- Maximum MPPT Current: 27A
- Pure Sine Wave Output
- Supports Lithium & Lead-acid Batteries
- 48V Battery System
- Maximum Charging Current: 180A
- LCD Display
- Wall-Mounted Design
- IP54 Protection
- Wi-Fi, RS232 & RS485 Communication
- Supports Parallel Operation (Up to 9 Units)
- Anti-Islanding Protection
- AC Over Current Protection
- AC Over Voltage Protection
- AC Short Circuit Protection
- Overload Protection
- Over Temperature Protection
- PV Reverse Polarity Protection
- Battery Reverse Polarity Protection
- Surge Protection
- Ground Fault Circuit Interrupter (GFCI)
